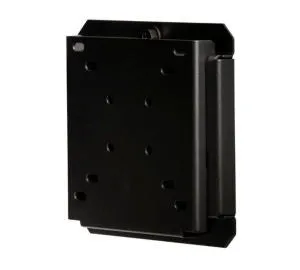

The SmartMount Universal Flat Wall Mount supports virtually any 10" to 29" flat panel screens. The ultra-slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for digital signage, POS stations, or office applications. For a quick and easy installation it may be mounted to a single wood stud or concrete. Mounts to metal stud using accessory metal stud fasteners.
It couldn't be simpler to get small displays installed and looking great. Just hook the adaptor plate to the wall plate and you get a sleek installation with an incredible low-profile of only one inch. Explore the possibilities this mount gives you for display placement thanks to its compact design.
- VESA 75 and 100mm compatible
- Additional display adaptor plates also available
- Low-profile design holds display .96" (24mm) away from the wall
- Display adaptor plate simply hooks onto the wall plate for quick and easy installation
- Mounts to a wood stud, concrete, cinder block or metal stud (metal stud accessory required)
- UL listed
| General Information | |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | SF630 |
| Brand Name | Peerless-AV |
| Product Line | SmartMount |
| Product Model | SF630 |
| Packaged Quantity | 1 |
| Product Type | Wall Mount |
| Compatibility | |
| Device Supported | Flat Panel Display |
| Minimum to Maximum Screen Size: | 10" to 29" |
| VESA Pattern: | 75 x 75, 100 x 100 |
| Mounting Pattern: | 75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
| Weight Capacity: | 80lb (36.0kg) |
| Distance from Wall: | 0.96" (24mm) |
| Finish | |
| Color: | Black |
| Finish: | Powder Coat |
| Features | Scratch Resistant |
| Size & Weight | |
| Product Dimensions: | 6.02 x 5.75 x 0.96" (153 x 146 x 24mm) |
| Weight (Approximate) | 1.70 lb |
| Ship Dimensions: | 9.5 x 2.5 x 12.25" (241.3 x 63.5 x 311.2mm) |
| Shipping Weight: | 2.5lb (1.13kg) |
| Miscellaneous | |
| Package Contents |
|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 5 Year |
